The CarbonX Electric Wheelchair combines premium carbon fiber construction with lightweight portability and dependable everyday performance. Weighing only 13KG, its carbon fiber frame provides an excellent balance of strength and easy handling while supporting users up to 120KG. Dual 200W brushless hub motors deliver smooth and efficient power, while 5.2Ah and 10.4Ah lithium battery options provide travel ranges of up to 20KM. Detachable and adjustable armrests further improve comfort, accessibility, and everyday convenience.
The CarbonX Electric Wheelchair combines premium carbon fiber construction with lightweight portability and dependable everyday performance. Weighing only 13KG, its carbon fiber frame provides an excellent balance of strength and easy handling while supporting users up to 120KG. Dual 200W brushless hub motors deliver smooth and efficient power, while 5.2Ah and 10.4Ah lithium battery options provide travel ranges of up to 20KM. Detachable and adjustable armrests further improve comfort, accessibility, and everyday convenience.
The CarbonX is engineered around a lightweight carbon fiber frame, combining structural strength with significantly reduced overall weight for easier everyday handling.
item type
metric unit
imperial unit

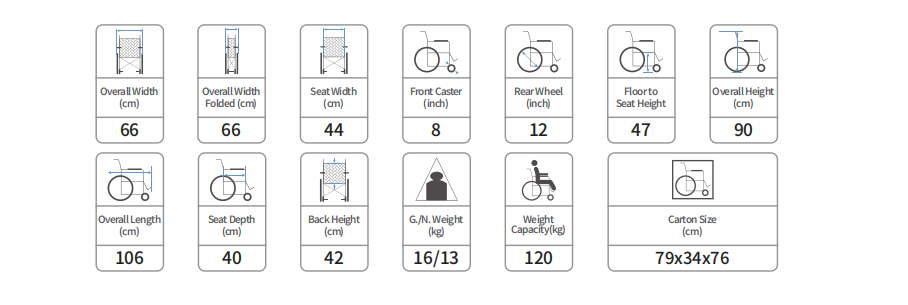

Overall Size (L × W × H)
106 × 66 × 90 cm
41.73 × 25.98 × 35.43 in
Folded Width
66 cm
25.98 in
Driving Speed
0–6 km/h
0–3.73 mph
Driving Range
10 / 20 km
6.2 / 12.4 miles
Load Capacity
120 kg
265 lb
Net Weight
13 kg
28.7 lb
Gross Weight
16 kg
35.3 lb
Seat Width
44 cm
17.32 inches
Seat Depth
40 cm
15.75 in
Backrest Height
42 cm
16.54 in
Motor
200W × 2 Brushless Hub Motors
Battery
25.9V 5.2Ah / 10.4Ah Lithium Battery
Front Wheel
8-inch PU tire
Rear Wheel
12-inch Pneumatic / PU tire
Seat Height (from ground)
47 cm
18.50 in
Carton Size (L × W × H)
79 × 34 × 76 cm
31.10 × 13.39 × 29.92 in
